No. 84 - Splitting Machine

Click on image to zoom

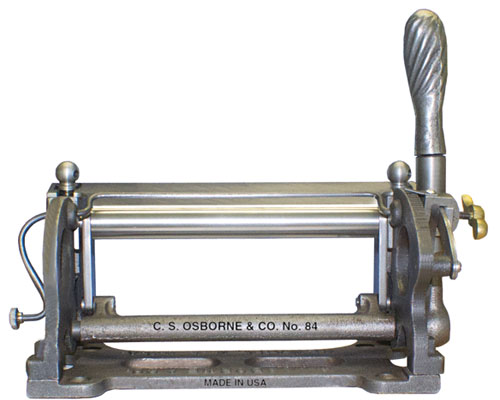

This is the Original Osborne No. 84 Splitting Machine. Cast iron frame. Made from the original Newark, NJ patterns. Uses a movable twist handle to set blade depth. A locking stop can also be set to return to the same setting. The operator s a strap, pushes the handle forward and twists to lock in the position. When pulling leather through, the operator continues to advance the handle forward with the free hand to create a tapered skive. Machine has a round bar across the blade as a safety feature. 8" hollow ground inlaid blade.

Replacement parts also available.

No. 84 - Splitting Machine
Osborne No.DescriptionWeight each (lbs & oz)UPC No.
84-HTwist Handle0 - 1417051
84-GBGuide Bar0 - 217050
84-SCBlade Screws0 - 417048
84-RRollers0 - 517046
84-GGuide0 - 617043
84-B8" Replacement Blade1 - 417044
84Splitting Machine12 - 217038
