No. N2 - Nickel Plated Grommets & Spur Washers

Click on image to zoom
Description:

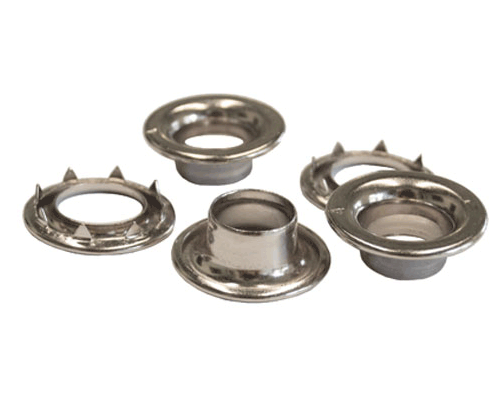

Nickel plated rolled rim grommet and spur washer.

Packaged one gross per box, except for the N2-10, which are packed in boxes of 20.






Notes:

For best results in setting No. N2 grommets and washers, use an Osborne No. 500 hole punch and an Osborne No. 217 setting die with corresponding sizes. Osborne grommet dies and grommet hole cutters are numbered to correspond with standard size grommets. Grommet dies and cutters should be used with a rawhide hammer or wooden mallet. We recommend the No. 395 hammer for this purpose and the No. 603 Cutting Pad.

These are also set using our Hand Press Machine Osborne No. W-1 or our Pneumatic Machine Osborne No. W-3 with the correspondent dies.

No. N2 - Nickel Plated Grommets & Spur Washers
Osborne No.Hole diameter (inches)Outside diameter (inches)Length under flange (in)Weight per box (lbs - oz)UPC No.
N2-09/32.645.1750 - 1313144
N2-113/32.79.2051 - 213146
N2-27/16.89.2151 - 1013148
N2-315/32.97.2552 - 413150
N2-49/161.12.322 - 413152
N2-55/81.27.383 - 813154
N2-729/321.725.4465 - 1113158
N2-81-3/321.910.4658 - 213160
N2-63/41.505.425 - 1013156
