No. N1 - Nickel Plated Grommets & Plain Washers

Click on image to zoom

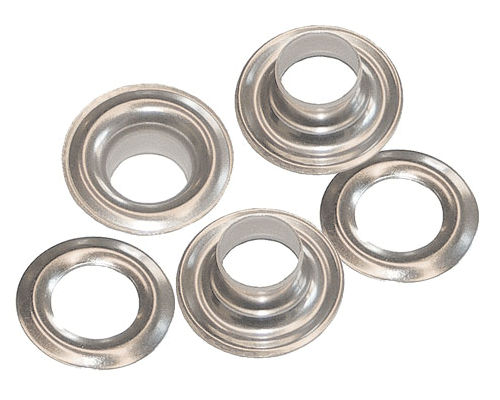

Nickel plated plain rim grommet and washer.

Packaged one gross per box.


For best results in setting No. N1 grommets and washers, use an Osborne No. 500 hole punch and an Osborne No. 216 setting die with corresponding sizes. Osborne grommet dies and grommet hole cutters are numbered to correspond with standard size grommets. Grommet dies and cutters should be used with a rawhide hammer or wooden mallet. We recommend the No. 395 hammer for this purpose and the No. 603 Cutting Pad.

These are also set using our Hand Press Machine Osborne No. W-1 or our Pneumatic Machine Osborne No. W-3 with the correspondent dies.

No. N1 - Nickel Plated Grommets & Plain Washers
Osborne No.Hole diameter (inches)Outside diameter (inches)Length under flange (in)Weight each (lbs & oz)UPC No.
N1-003/16.460.1350 - 213112
N1-01/4.546.1750 - 513114
N1-19/32.7.1850 - 813116
N1-23/5.835.2150 - 1213118
N1-37/16.955.2951 - 213120
N1-41/21.062.3741 - 813122
N1-55/81.205.3301 - 1213124
N1-613/161.828.2326 - 013126
