No. G2 - Brass Spur Grommets & Washers

Click on image to zoom

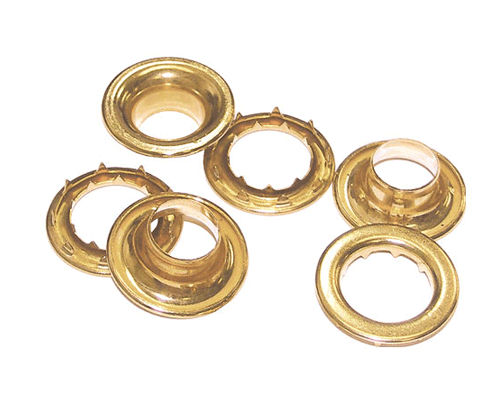

Brass rolled rim grommets and spur washers.

Packaged one gross per box, except for the G2-10, which are packed in boxes of 20.


For best results in setting No. G2 grommets and washers, use an Osborne No. 500 hole punch and an Osborne No. 217 setting die with corresponding sizes. Osborne grommet dies and grommet hole cutters are numbered to correspond with standard size grommets. Grommet dies and cutters should be used with a rawhide hammer or wooden mallet. We recommend the No. 395 hammer for this purpose and the No. 603 Cutting Pad.

These are also set using our Hand Press Machine Osborne No. W-1 or our Pneumatic Machine Osborne No. W-3 with the correspondent dies.

No. G2 - Brass Spur Grommets & Washers
Osborne No.Hole diameter (inches)Outside diameter (inches)Length under flange (in)Weight per box (lbs - oz)UPC No.
G2-09/32.645.1750 - 1313044
G2-113/32.79.2051 - 213046
G2-27/16.89.2151 - 1013048
G2-315/32.97.2552 - 413050
G2-49/161.12.322 - 413052
G2-55/81.27.383 - 813054
G2-63/41.505.425 - 1013056
G2-729/321.725.4465 - 1013058
G2-81-3/321.91.4658 - 213060
