No. B2 - Black Rolled Rim Grommet & Spur Washer

Click on image to zoom

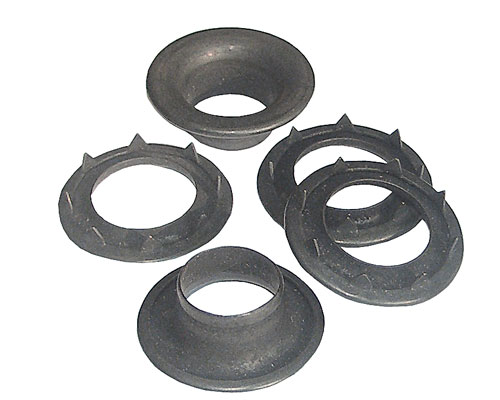

Dull black, rolled rim grommet with spur washers,

These parts interlock, their teeth grasping the material to provide a rugged, unyielding setting.

Packaged one gross per box.


For best results in setting No. G2 grommets and washers, use an Osborne No. 500 hole punch and an Osborne No. 217 setting die with corresponding sizes. Osborne grommet dies and grommet hole cutters are numbered to correspond with standard size grommets. Grommet dies and cutters should be used with a rawhide hammer or wooden mallet. We recommend the No. 395 hammer for this purpose and the No. 603 Cutting Pad.

These are also set using our Hand Press Machine Osborne No. W-1 or our Pneumatic Machine Osborne No. W-3 with the correspondent dies.

No. B2 - Black Rolled Rim Grommet & Spur Washer
Osborne No.FinishHole diameter (inches)Outside diameter (inches)Length under flange (in)Weight per box (lbs - oz)UPC No.
B2-0Black9/32.645.1750 - 1313444
B2-1Black13/32.79.2050 - 1313446
B2-2Black7/16.89.2151 - 1013448
B2-3Black15/32.97.2552 - 213350
B2-4Black9/161.12.323 - 013352
